1 ton to 10 ton gasoline electric diesel forklift
products description
Forklifts are industrial handling vehicles, which refer to various wheeled handling vehicles for loading, unloading, stacking and short-distance transportation of palletized goods. It is often used for the transportation of large objects in storage, and is usually driven by fuel engines or batteries.
We supply diesel forklifts, gasoline forklifts and electric forklifts:
XCMG 1.5T Diesel Forklift FD15T
FD series diesel forklift provide you with multiple choice as per your real need,we have different reliable engines for choice. The engine is specifically designed for the forklift use,with low fuel consumption, less noise and vibration,all these features improve the whole performance of the forklift.
Advantages and Highlights:
One-piece designed of suspension frame.
New water tank & cooling system.
Larger operation space.Optimized steering wheel, operating handle and pedals.
High-efficency hydraulic system, lower fuel comsumption.
Enhanced wide view mast improves the work efficency and operating safety.
| Model | Unit | FD15T-I | FD15T-JB | FD15T-JC |
| Power Type | Diesel | |||
| Rated Load Capacity | kg | 1500 | ||
| Load Centre | mm | 500 | ||
| Rated Lift Height | mm | 3000 | ||
| Free Lift Height | mm | 100 | ||
| Fork Size (L×W×T) | mm | 920×120×35 | ||
| Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° | ||
| Fork Overhang (Wheel Center to Fork Face) | mm | 409 | ||
| Rear Overhang | mm | 450 | ||
| Length to Face of Fork (Without Fork) | mm | 2250 | ||
| Overall Width | mm | 1090 | ||
| Mast Lowered Height | mm | 2025 | ||
| Overhead Guard Height | mm | 2180 | ||
| Turning Radius (Outside) | mm | 2030 | ||
| Travel Speed (No Load) | km/h | 14.5 | ||
| Lifting Speed (Full Load) | mm/sec | 560 | ||
| Front Tread | mm | 890 | ||
| Rear Tread | mm | 920 | ||
| Wheelbase | mm | 1410 | ||
| Total Weight | kg | 2590 | ||
| Battery | V/Ah | 12/90 | ||
| Engine Model | NB485BPG | C240PKJ30 (EuⅢ) | 4TNE92 (EuⅢ & EPAⅢ) | |
| Engine Manufacturer | XINCHAI | ISUZU | YANMAR | |
3T Diesel Forklift FD30T
| Model | FD30T-E | FD30T-A | FD30T-F | FD30T-JB | FD30T-JE | FD30T-JM | FD30T-JD |
| Power Type | Diesel | ||||||
| Rated Load Capacity | 3000kg | ||||||
| Load Centre | 500mm | ||||||
| Rated Lift Height | 3000 | ||||||
| Free Lift Height | 100mm | ||||||
| Fork Size (L×W×T) | 1070×125×45mm | ||||||
| Mast Tilt Angle (F/R, α°/β°) | 6°/12° | ||||||
| Fork Overhang | 484mm | ||||||
| Rear Overhang | 595mm | ||||||
| Ground Clearance | 145mm | ||||||
| Length to Face of Fork | 2773mm | ||||||
| Overall Width | 1225mm | ||||||
| Overhead Guard Height | 2235mm | ||||||
| Turning Radius (Outside) | 2450mm | ||||||
| Travel Speed (No Load) | 19km/h | ||||||
| Lifting Speed (Full Load) | 430mm/sec | 410mm/sec | |||||
| Lowering Speed (Full Load) | 450mm/sec | ||||||
| Max.Gradeability (Full Load) | 20% | ||||||
| Tyre (Front x 2) | 28×9-15-12PR mm | ||||||
| Tyre (Rear x 2) | 6.50-10-10PR mm | ||||||
| Total Weight | 4340kg | ||||||
| Battery | 12/90V/Ah | ||||||
| Engine Model | A498BT1-35 | C490BPG-237 | C490BPG-37 | C240PKJ30 | 4TNE98 | Mitsubishi S4S(EuⅢ) | 4TNE94(EuⅢ) |
| (EuⅢ) | (EuⅢ) | ||||||
| Engine Manufacturer | XINCHAI | XINCHAI | XINCHAI | ISUZU | YANMAR | Mitsubishi | YANMAR |
1 ton Electric Smart Stacker Forklift XCS-PW12
• Full AC System
• OPS System (Sit-in type)
• EPS Steering System • Electromagnetic Braking system
• Lower Energy Consumption • Easy-to-read operator display
• Assistance System to fit in your specific working condition Ergonomic design and high performance supported by innovative technology help XCMG reach trucks become the perfect solution for various application. Whether use in operating in pallet, drive-through or drive-in racking. Whether for narrow areas or low clearances. XCMG reach truck will always be your good assistant in stacking.
| Model | XCS-PW12 | ||
| Rated capacity | Q | kg | 1200 |
| load center distance | C | mm | 600 |
| Power mode | AC Motor | ||
| battery standard | 2VBS | ||
| Tyre type | PU | ||
|
Size |
|||
| Lowered mast height | h1 | mm | 2301 |
| Max.lifting height | h3 | mm | 3530 |
| Extended mast height | h4 | mm | 4088 |
| Load distance, centre of drive axle to fork | X | mm | 647 |
| Wheel base | y | mm | 1248 |
| Additional wheels dimensions | xw | mm | 150X54 |
| Tread, front | b10 | mm | 522 |
| Tread rear | b11 | mm | 390/505 |
| Handel height | h14 | mm | 850/1385 |
| Height, lowered | h13 | mm | 90 |
| Length | l1 | mm | 1919 |
| Length to face of forks | l2 | mm | 769 |
| Width | b1 | mm | 820 |
| Fork dimensions | s/e/l | mm | 60/180/1150 |
| Distance between fork-arms | b5 | mm | 570/ 685 |
| Min.Turning radius | Wa | mm | 1440 |
|
Performance |
|||
| Travelling speed loaded/unloaded | km/h | 6.0 / 7.0 | |
| Lift speed,loaded/unloaded | m/s | 0.09/ 0.14 | |
| Lowering speed,loaded/unloaded | m/s | 0.28/ 0.23 | |
| Gradeability,loaded/unloaded | % | 6.0/12.0 | |
|
Motor & Battery |
|||
| Lift motor power | kw | 3.2 | |
| Drive motor power | kw | 1.3 | |
| Voltage | V | 24 | |
| Amphere | Ah | 180 | |

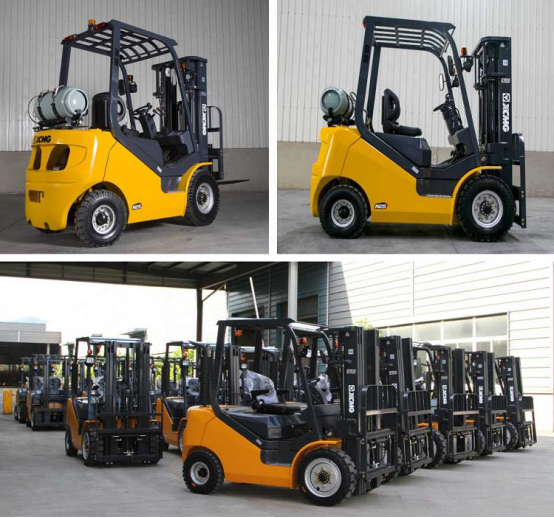

XCMG 2.5T Gasoline and LPG Forklift FGL25T
1. Robust and Reliable Diesel Engine
2. Wide-view Mast and Container Mast for Choice
3. Fully Integrated Frame and Suspension Chassis
4. Excellent Cooling System and Heat Releasing System
5. Easy to maintain and repair
6. Lower Gravity
7. Emergency Stop Switch
8. Multiple Option Available for Choice
9. Available with a range of high performance industrial engine, big torque at low speed, make the whole machine quiet, with less vibration and efficient. 10. High efficiency is also delivered through the performance of the axles, the excellent brake system make sure the forklift operate with safety, the steering axle provide prompt and precise feedback to the driver when steering.
| Model | FG25T-JA | FL25T-JA | FGL25T-JA | FL25T-JG | |
| Power Type | Gasoline | LPG | Gasoline & LPG | LPG | |
| Rated Load Capacity | kg | 2500 | |||
| Load Centre | mm | 500 | |||
| Rated Lift Height | mm | 3000 | |||
| Free Lift Height | mm | 100 | |||
| Fork Size (L×W×T) | mm | 1070×125×40 | |||
| Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° | |||
| Fork Overhang (Wheel Center to Fork Face) | mm | 479 | |||
| Length to Face of Fork (Without Fork) | mm | 2643 | |||
| Overall Width | mm | 1150 | |||
| Mast Lowered Height | mm | 2055 | |||
| Mast Extended Height (With Backrest) | mm | 4070 | |||
| Overhead Guard Height | mm | 2215 | |||
| Turning Radius (Outside) | mm | 2365 | |||
| Tyre (Front x 2) | mm | 7.00-12-12PR | |||
| Tyre (Rear x 2) | mm | 6.00-9-10PR | |||
| Total Weight | kg | 3950 | |||
| Battery | V/Ah | 12/60 | |||
| Engine Model | K25 | EPA GM 3.0 | |||
| Engine Manufacturer | NISSAN | ||||
We supply all the models of Chinese famous brands’ forklift like XCMG, Heli, Hangcha, Jinjiang and so on.
If you would like to know more details and products, please contact us!
