1 ton to 70 ton crawler and wheel excavators

Short Description:

We supply all the models of XCMG crawler excavators and wheel excavators， including XE15U, XE35U, XE40, XE55D, XE60D, XE60WA, XE75D, XE80D, XE135B, XE135D, XE150D, XE150WB, XE200D, XE215C, XE215CLL, XE215D, XE235C, XE240, XE260CLL, XE305D, XE355C, XE370CA, XE470D, XE700D, etc.

Send email to us

Product Detail

Product Tags

products description

An excavator is an earth-moving machine that uses a bucket to excavate materials above or below the bearing surface and load it into a transport vehicle or unload it to a stockyard.

details information

XCMG XE15U Mini Crawler Excavator

XE15U hydraulic excavator uses a mechanical injection oil engine with national II emission standards and has characteristics of strong power, energy conservation and environmental protection, high reliability and excellent performance.

Description		Unit	Parameter value
Operating weight		Kg	1795
Bucket capacity		m³	0.04
Engine	Model	/	D782-E3B-CBH-1
	No. of cylinders	/	3
	Output power	kw/rpm	9.8/2300
	torque/speed	N.m	44.5/1800
	Displacement	L	0.778
Hydraulic system	Travel speed(H/L)	km/h	4.3/2.2
	Gradeability	°	30°
	Pressure of prime valve	MPa	22
	Pressure of travel system	MPa	22
	Pressure of swing system	MPa	11
	Pressure of pilot system	MPa	3.9
Oil Capacity	Fuel tank capacity	L	18
	Hydraulic tank capacity	L	17
	Engine oil capacity	L	3.8
Appearance size	Overall length	mm	3560
	Overall width	mm	1240
	Overall height	mm	2348
	Width of platform	mm	990
	Overall width of chassis	mm	990/1240
	Width of crawler	mm	230
	Track length on ground	mm	1270
	Crawler gauge	mm	760/1010
	Clearance under counterweight	mm	450
	Min. ground clearance	mm	145
Working scope	Min. tail swing radius	mm	620
	Max. digging height	mm	3475
	Max. dumping height	mm	2415
	Max. digging depth	mm	2290
	Max. vertical wall digging depth	mm	1750
	Max. digging reach	mm	3900
	Min. swing radius	mm	1530
Standard	Length of boom	mm	1690
	Length of arm	mm	1100
	Bucket capacity	m³	0.04

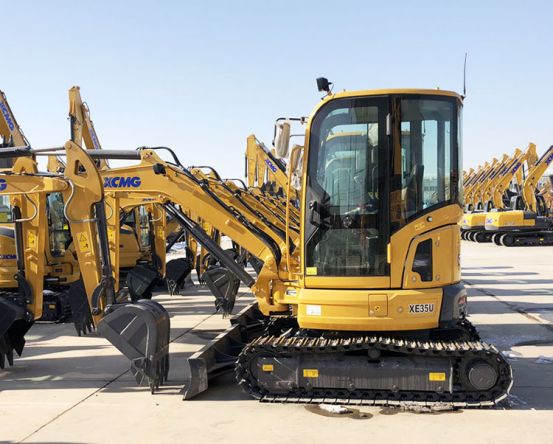

XCMG XE35U 1.64 ton small crawler excavator

XE35U crawler excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.

Model		Metric unit	XE35U
Operating weight		kg	4200
Bucket capacity		m3	0.11
Engine	Output power	kW/ r/min	21.6/2400
	torque/speed	N.m	107.2/1444
	Displacement	L	1.642
Main performance	Travel speed(H/L)	km/h	3.6/2.2
	Gradeability	%	58
	Rotating speed	r/min	8.5
	Ground pressure	kPa	36.6
	Bucket digging force	kN	24.6
	Arm crowd force	kN	17.8
Appearance size	Overall length	mm	4960
	Overall width	mm	1740
	Overall height	mm	2535
	Width of platform	mm	1585
	Length of crawler	mm	2220
	Overall width of chassis	mm	1740
	Width of crawler	mm	300
	Track length on ground	mm	1440
	Crawler gauge	mm	1721
	Clearance under counterweight	mm	587
	Min. ground clearance	mm	297
	Min. tail swing radius	mm	870
Working scope	Max. digging height	mm	5215
	Max. dumping height	mm	3760
	Max. digging depth	mm	3060
	Max. vertical wall digging depth	mm	2260
	Max. digging reach	mm	5415
	Min. swing radius	mm	2170

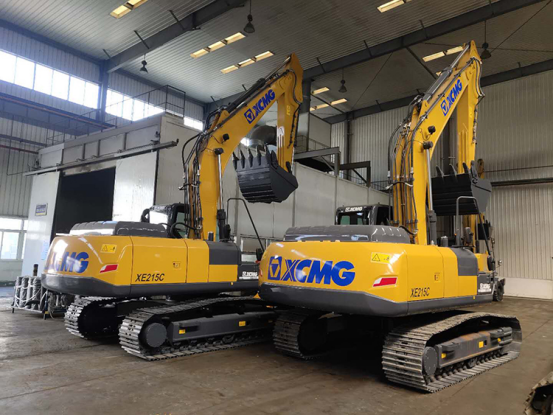

XE215C 21.5ton hydraulic crawler excavator

XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on. It has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.

Engine	Model	ISUZU CC-6BG1TRP
	Equipped	Electronic fuel injection
		Four strokes
		Water cooling
		Turbo-charging
		Air to air intercooler
	No. of cylinders	6
	Output power	128.5/2100 kW/rpm
	Torque/speed	637/1800 N.m/rpm
	Displacement	6.494 L
Operation Weight		21700 kg
Bucket Capacity		0.9—1.0 m ³
Main performance	Travel speed(H/L)	5.5/3.3 km/h
	Rotating speed	13.3 r/min
	Gradeability	≤35°
	Ground pressure	47.2 kPa
	Bucket digging force	149 kN
	Arm digging force	111 kN
	Maximum traction	184 kN
Working scope	Max. digging height	9620 mm
	Max. dumping height	6780 mm
	Max. digging depth	6680 mm
	Excavation depth of 8 feet level	6500 mm
	Max. vertical wall digging depth	5715 mm
	Max. digging reach	9940 mm
	Min. swing radius	3530 mm

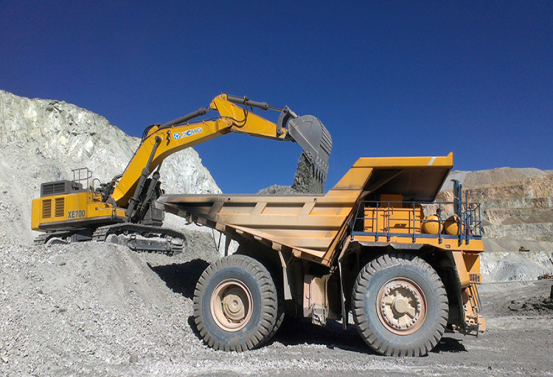

XCMG XE700D Large Crawler Excavator

Description		Unit	Parameter value
Operating weight		kg	69000
Bucket capacity		m³	2.4-4.6
Engine	Model	Engine	QSX15
	Direct injection	—	√
	Four strokes	—	√
	Water cooling	—	√
	Turbo-charging	—	√
	Air to air intercooler	—	√
	No. of cylinders	—	6
	Output power	kW/ r/min	336/1800
	torque/speed	N.m	2102/1400
	Displacement	L	15

15 ton XE150WB hydraulic wheel excavator

XE150WB has used a new generation of independent researched and developed controllers as well as a low-noise pump and especially considered the matching between the engine and the low-speed load to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts. As a model featuring sufficient flexibility, high fuel efficiency and operation reliability in accordance with the North America and Euro-III emission standards, this machine can be provided with optional one-section/two-section boom working mechanisms and multi-functional implements, able to be widely used in municipal construction, highway bridges, housing construction, road engineering, construction of water conservancy works, new rural construction, general construction projects and other small and medium earthwork projects.

Engine model	/	QSB4.5
Output power of engine	Kw/r/min	104/2000
Max.torque/engine	N.m	586
Displacement	L	4.5
Fuel tank capacity	L	250
Rated flow of main pump	L/min	2×160
Pressure of main safety valve	Mpa	31.4/34.3
Hydraulic tank capacity	L	135
Slewing speed	r/min	13.7
Digging capacity of tcuket	KN	60
Digging capacity of tcuket rod	KN	65
Min.turning radius	mm	6500
Travel speed	Km/h
Gradient capability	%	70
A Total length	mm	6482
B Total width	mm	2552
C Total heigth	mm	3158
Counterweight ground clearance	mm	1230
Min.ground clearance	mm	359
Min.tail swing radius	mm	2300
Wheelbase	mm	2800
Track gauge	mm	1920
Total width of chassis	mm	2495
Distance between front axle and turning center	mm	1700
Hood height	mm	2430
The maximum digging depth of dozer	mm	112
