12m to 32m aerial working platform truck
products description

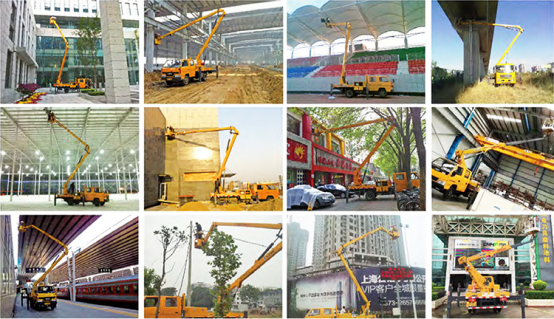

GKS25BH51 Aerial Working Platform Truck
The new generation of small and light duty Aerial working platform from XCMG is only 6.5m in length, ecology green and saving energy. Big span of double-level horizontal legs can be regulated separately with good adaptability to the work conditions . Equal volume cylinder make sure that work platform is always horizontal. The machine is equipped with remote control equipment, has the function of stowing vehicle with one key, easy to operate.
| Item | Unit | Parameters |
| Max. working height of platform | m | 25 |
| Max. working range of platform | m | 14.5 |
| Rated load of working platform | kg | 300 |
| Rotation angle of working platform | . | ±90 |
| Travelling sizes (L×W×H) | mm | 6500×2250×3280 |

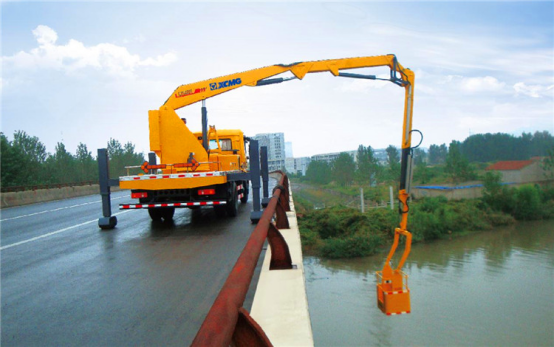

XZJ5140JGKD4 Bridge Inspection Truck
- Bridge inspection truck is a special vehicle, which supply work platform for person while working, it can be equipped with bridge detector, used for mobile inspection and maintenance work. Bridge inspection truck can be divided into bucket type.
- Under-bridge access equipment type according to working equipment. under-bridge access equipment type use access platform, with good stability and big carrying capacity, it is convenient for personnel entering the platform from bridge or return to bridge.
- bucket-type aerial platform, with compact structure, work is flexible, almost is not subject to the limit of bridge structure, it not only an inspect under bridge but also can inspect the upper structure outside the bridge, sometimes it can be used as an Aerial work platform.
| Description | Unit | Parameter value |
| Overall length of unit | mm | 9790 |
| Overall width of unit | mm | 2480 |
| Overall height of unit | mm | 3750 |
| Total weight of unit | kg | 13535/14195 |
| Max. Operating Height | m | 16.7 |
| Max. aerial horizontal working range | m | 8 |
| Max. lowering depth | m | 6 |
| Max. low latitude horizontal working range | m | 2 |
| Overall dimensions of platform | m | 1.1×0.8×1.1 |
| Rated load of platform | kg | 200 |
| Rotation range of 1st slewing organization | ° | 0~360 |
| Max. walking speed | m/min | ≥13 |
| Chassis model | Dong Feng DFL5160XXYBX1A (State IV)/DFL5140XXYB5 (State V) | |
| Max.net power of engine | 210Ps (155kW) | |
advantage
Imported key parts, performance is reliable; advanced CAN technology has superior operation performance. Two controls enable the whole unit to work without limitation, column and bucket has double rotation functions , simple and efficient.
We supply Chinese famous brands’ aerial working platform truck like XCMG, Handler and so on.
If you would like to know more models and details, please contact us!
