Short Description:

The latest XCMG agricultural version telehandler which features the highest operation simplicity, safety and efficiency.The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.




Product Detail

Product Tags

products description

Telescopic forklift is a multi-purpose forklift with off-road performance and telescopic arms. It is suitable for working in a variety of working environments. It is an ideal equipment for loading and unloading, lifting, and transportation in industries such as industrial and mining, enterprises, construction, building materials, ports, and municipal engineering. The vehicle is also equipped with various attachments such as buckets, hooks, and booms for users to choose, install and use. Its loading and unloading height and off-road performance are unmatched by ordinary forklifts.

XC6 is the latest XCMG agricultural version telehandler which features the highest operation simplicity, safety and efficiency.The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.

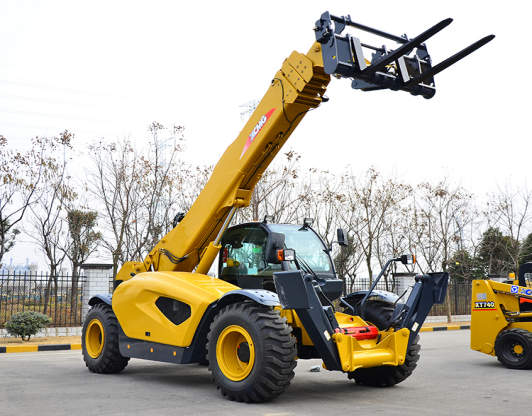

XC6-4517K telescopic forklift telehandler is a representative product of our K series telescopic handlers. This product is equipped with imported Cummins engine of strong and reliable power and imported axles and transmission of stable drive. The full hydraulic wet brake is applied to ensure driving safety. The four-section telescopic boom structure features flexible operations, accurate forklifting, and automatic leveling, with the maximum lifting height up to 16.7m. It’s a multifunctional high-efficiency small-sized construction machinery product.

* Powerful international brand engines. Special CARRARO transmissions and axles for smooth drive.

* The international top-level full-hydraulic wet brake system features stable and reliable braking and guarantees driving safety.

* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.

* The frame leveling function equipped (The body is capable of 10º swing in both leftward and rightward directions) realizes powerful site adaptability and meets the needs of diversified working conditions.

* The special overload control system guarantees operation safety and reliability.

* The electrohydraulic proportional control for the working system features accurate, stable, and efficient operations.

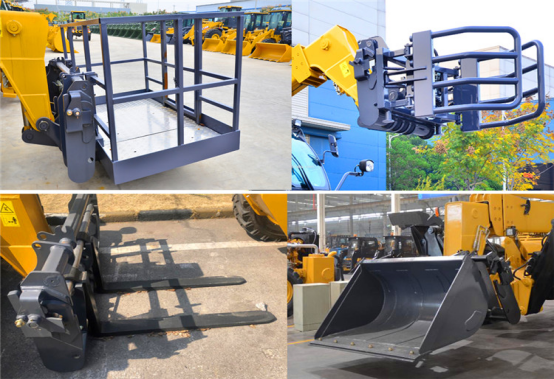

* Optional aerial working platform, bucket and various tools to meet customer needs.

specification

Description Unit XC6-3007K
Gross weight kg 7450
Engine power kW 90
Rated load kg 3000
Effective load at maximum forward reach kg 1250
Maximum lifting height mm 6950
Maximum forward reach mm 3690
Center distance of load mm 500
Luffing angle ° -3~65
Fork angle ° -90~18
Maximum traction force kN ≥55
Gradeability ° ≥25
Maximum traveling speed km/h 40*
Turning radius mm ≤4020
Braking distance m ≤8
Overall length mm 4820
Overall width mm 2355
Overall height mm 2460
Wheelbase mm 2850
Wheel tread mm 1920
Fork length mm 1000
Bale clamp diameter mm 800-1800



XC6-4517K

Unit XC6-4517K
Gross weight kg 13500
Engine power kW 82(CUMMINS)/74.9(DDE)
Rated load kg 4500
Maximum lifting height mm 16700
Maximum forward reach mm 12600
Center distance of load mm 600
Luffing angle ° -4~73
Fork angle ° -90~18
Maximum traction force kN ≥70
Gradeability ° ≥25
Maximum traveling speed km/h 36
Turning radius mm ≤5000
Braking distance m ≤10 (Initial speed 32±2km/h)
Overall length mm 6960
Overall width mm 2500
Overall height mm 2850
Wheelbase mm 3900
Wheel tread mm 2060
Fork length mm 1200

If you would like to know more details and products, please contact us!
