Aerial platform fire truck
products description

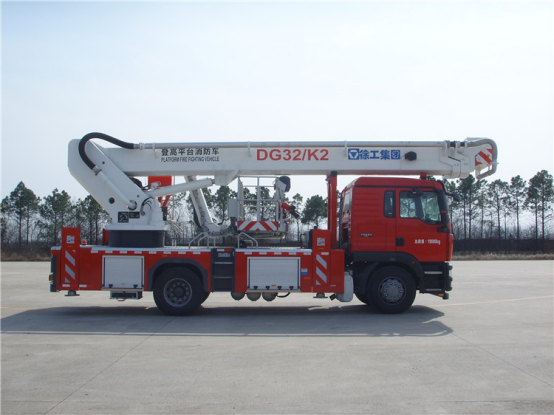

32m Aerial Platform Fire Truck DG32K2
- The chassis of this vehicle adopts the chassis of SINOTRUK SITRAK ZZ5206N501GE1, with nine forward gears, one reverse gear, and the maximum speed is not less than 90km/h; the engine model is MC07.28-50, the rated power is 206kW; the emission meets the requirement of the national V emission standard; it has the ABS anti-lock function; it adopts the electronic control module control and hydraulic assisted shift, the operation is stable and reliable.
- The ladder truck is equipped with an PSKD80 electronically controlled fire monitor in front of the working platform to achieve high altitude and ground fire extinguishing operations. The water inlet and control valve are fully equipped and easy to operate.
- It uses CAN bus PLC control. The upper vehicle operation can be carried out on the turntable as well as on the work platform. The humanized multimedia display system on the control console can display the dynamic working parameters of the whole machine at any time and perform safety control. The electronic amplitude limiter equipped makes the whole operation simple, safe and reliable.
- This ladder truck uses advanced electro-hydraulic proportional control technology. The main electrical and hydraulic components are imported, all of the imported hydraulic sealing components and high-precision pipes adopt hydraulic hard pipes. The system has high reliability, stable operation and good micro-motion.
We provides cost-effective customized services, the solutions and quotations upon receiving your personalized demand. | ||
Rated working height | m | 32 |
Rated working range | m | 20~25(Rotational amplitude variable) |
Working platform dimensions (length × width × height) | m | 2000×900×1125 |
Working platform rated load | kg | 500 |
Leg span (vertical × horizontal) | m | 5250×5800 |
Arm rest actuation time | s | ≤120 |
Spread time of outrigger | s | ≤30 |
Maximum slewing speed | r/min | 0.2~1.0 |
Maximum allowable slope | ° | 3 |
Maximum allowable operating force of working platform | N | 500 |

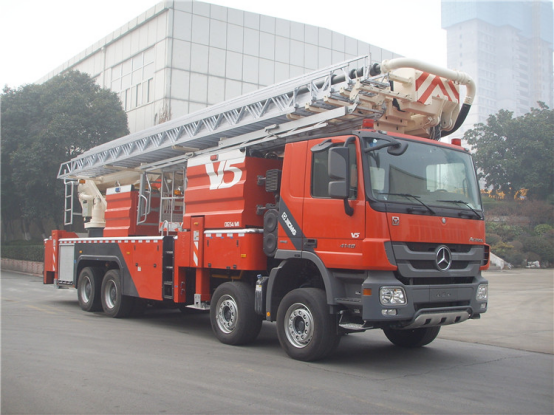

Emergency rescue DG54M1
XCMG DG54M1 aerial platform fire truck is the main battle vehicle integrates three functions of fire tanker, aerial spray truck, foam truck and aerial truck, which is widely applied in fire fighting and rescue operation in cities and towns, mine, oil field and plant as well as other medium and high-rise buildings, in addition, it also is the first choice for medium and high-rise building fires, rescue of persons in distress and properties.
Deceleration and stopping at limit position are controlled by computer automatically, which makes operation quick, labor-saving, convenient and stable, also brings large speed regulating range, flexible fine motion and exact movements. With the effective cooperation of straight telescopic boom plus folding boom, it is with excellent aerial obstacle-crossing capacity, which has the wider operation scope than the straight boom fire truck.
We provides cost-effective customized services, the solutions and quotations upon receiving your personalized demand. |
|||
Boundary dimension | 11760×2500×4000mm | ||
Full mass | 41600kg | ||
Maximum speed | ≥90km/h (electric speed limit) | ||
Minimum turning diameter | ≤24m | ||
Approach angle | ≥23° | ||
Departure angle | ≥9° | ||
Maximum gradeability | ≥25% | ||
Outrigger span | Longitudinal span | 6700mm | |
Horizontal span | 8000mm | ||
Work platform load | 500kg | ||
Maximum working height | 54m | ||
Maximum operating radius | 25m | ||
Elevating angle of boom | The elevating angle of telescopic boom is 0 to 83 degrees, and that of boom NO.2 and telescopic booms is 0 to 177 degrees. | ||
Rotation scope | 360° full-rotation | ||
Spread time of outrigger | ≤35s | ||
Time for lifting the boom to rated height and rotating 90° | ≤150s | ||
Maximum slewing speed | 0.1~1.0r/min | ||
Fire pump | Rated flow (L/s) | ≥70 | |
Rated pressure (MPa) | ≥1.6 | ||
Fire fighting gun | Water monitor | Model | PLKD120ZB-3480 |
Rated flow (L/s) | 64 | ||
Rated pressure (MPa) | ≤1.0 | ||
Range (m) | ≥65m | ||
Foam monitor | Model | PLKD120ZB-3480 | |
Rated flow (L/s) | 64 | ||
Rated pressure (MPa) | ≤1.0 | ||
Range (m) | ≥60m | ||
The swing range of the monitor head | -45~+60 | ||
-80~+90 |
We also have many other models like JP42C1, JP32C4, JP32C1, JP20C2, YT32M2, YT53M1, AP50F1, JY120F1, SG20, SG80F2, SG250F2, DG22C2, DG34M1, DG32K3, DG68, etc.
If you would like to know more details and products, please contact us!
