Chinese hydraulic front wheel loader

products description

Loader is a kind of earthwork construction machinery widely used in roads, railways, construction, hydropower, ports, mines and other construction projects. It is mainly used for shoveling bulk materials such as soil, sand, lime, and coal, and can also be used for ore , Hard soil, etc. for light shovel and digging operations. Different auxiliary working devices can also be used for bulldozing, lifting and other materials such as wood loading and unloading operations.

detail information

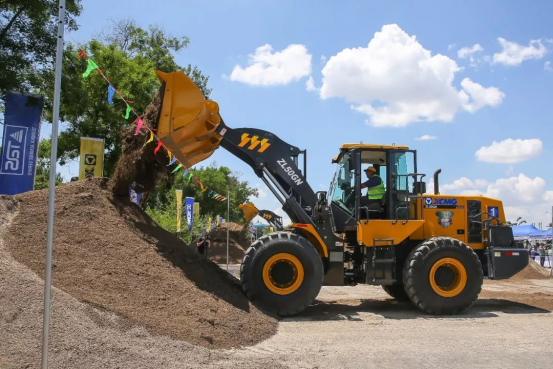

XCMG ZL50GN 5 ton hydraulic wheel loader

XCMG wheel loader ZL50GN is the most popular model of China 5t wheel loader,is the latest cross-generationproduct developed ,the first-choice equipment for the production organizationin the fields of ports, mines, engineeringconstructions, and logistics.

Performance Highlights:

Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
The large rock bucket with capacity of 2.5m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.

160kN breakout force handle allkinds of materials with ease,≥3.5m high dumping capacityhandle the severe conditions with ease.Optional parts:

Side-dump bucket/ Clipping plier I (paired teeth)/ Clipping teeth II (staggered teeth)/ Toad’s mouth clamp/ Port plier/ Grasping grass machine/ Snowplow/Pallet fork

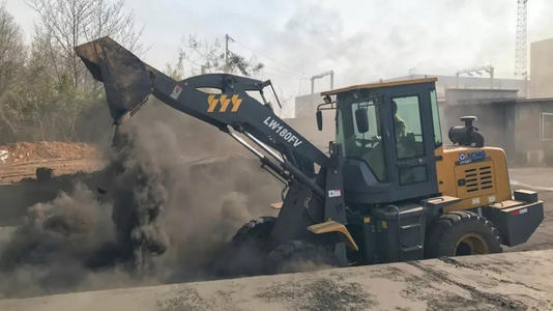

LW180K/LW180KV 1.8ton small wheel loader

LW180K/KV Wheel loader is a self-propelled earthmoving machine which is hinged in front of the chassis and consists of a moving arm, a connecting rod mechanism and a loading bucket. It can be used for shoveling, transporting, unloading and leveling. If the corresponding working device is replaced, it can also be used for bulldozing, lifting, loading and unloading wood and steel pipes. It is a kind of ten purposes. A wide range of construction machinery.

LW300FN 3 ton wheel loader

With traction at ≥9t and breakout force at ≥13t. High adaptability, with turning radius at 5,165mm (tire center).

* Market position：
Industry 3t single-model sales champion. Excellent quality power and drive systems.

* High maturity and reliability：
1.The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites. The bucket is made of high strength material to realize high wear and impact resistance.

2. It features high efficiency, energy-saving, and strong power.

3.The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.
4.The bucket is made of high strength material to realize high wear and impact resistance. The lengthened bucket bottom and the sharp bucket shape ease the penetration and realize higher bucket loading capacity. The contracted flare angle and the reduced cross section ease penetration and lifting.
5.The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions. 6. The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.

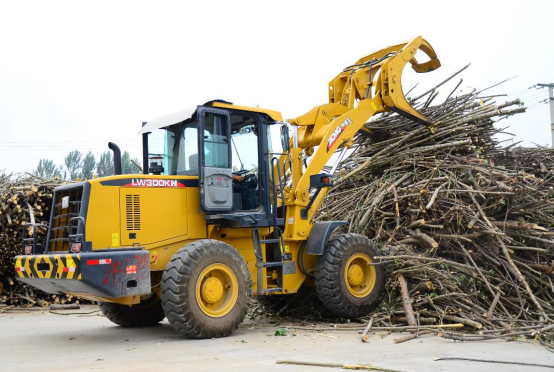

Other 3 ton wheel loader models we have: LW300KN, LW300FV, LW300K, LW300F

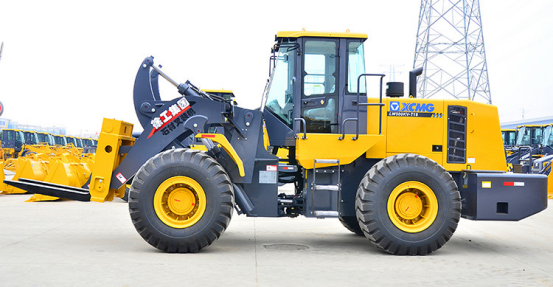

LW500FN 5 ton wheel loader

LW500FN boasts outstanding advantages (such as efficiency) in the fields of engineering constructions, aggregate yards, and coal logistics.

Performance Highlights

1,The 160kN traction force and ≥3. 5m high dumping capacity handle the severe conditions with ease.

2,≥7 ,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.

3, The front frame adopts the box structure with integrally cast lugs and the rear frame adopts the special-shaped box beams welded from variable stiffness bent plates, featuring high carrying capacity.

4, The hinged joints between front and rear frames adopt the structure of rolling bearings + knuckle bearings, featuring high carrying capacity and working stability.

5, With short wheelbase and small turning radius, this product features high mobility and flexibility and outstanding field adaptability. Variety attached tools meeting requirements of different working conditions: Clipping plier I (paired teeth)/ Clipping plier II (staggered teeth)/ Toad’s mouth clamp/ Port plier/ Grasping grass machine/ Pallet fork/ Snowplow.

Other 5 ton wheel loader models we have: LW500KN, LW500FV, LW500K, LW500HV

 More other models

1 ton wheel loaders: LW160FV, LW160K

2 ton wheel loaders: LW200KV, LW200K

4 ton wheel loaders: LW400FN, LW400KN, LW400K

6 ton wheel loaders: LW600KN, LW600KV, LW600FV

7 ton wheel loaders: LW700KN, LW700HV

8 ton wheel loaders: LW800KN, LW800HV

9 ton wheel loaders: LW900KN

10 ton wheel loaders: LW1000KN

11 ton wheel loaders: LW1100KN

12 ton wheel loaders: LW1200KN

If you would like to know more details about our products, please contact us!
