Chinese new SHANTUI and XCMG crawler bulldozers
product description
Bulldozer is a kind of earth-moving machinery capable of excavating, transporting and discharging rock and soil. It has a wide range of uses in open-pit mines. For example, it is used for construction of dumping yard, leveling of automobile dumping yard, accumulation of scattered ore rock, leveling of work flats and construction sites, etc. It is not only used for auxiliary work, but also for main mining work. For example: stripping and mining of placer deposits, pulling and boosting of scrapers and rock ploughing machines, and cooperating with other earth-moving machinery to reduce the height of stripping steps when there is no transportation mining method.
product parameters

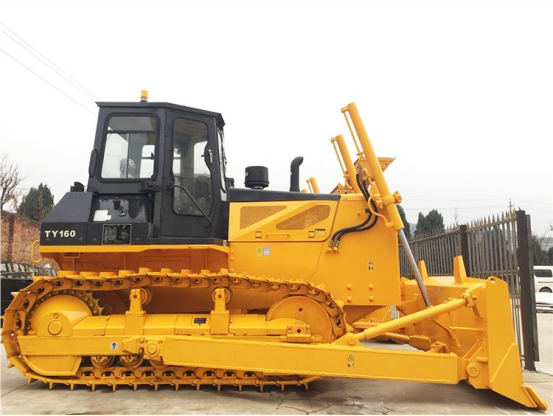

XCMG HP160 TY160 bulldozer
TY160 bulldozer which has excellent power, reliability and a long service life. Through the introduction of bulldozer technology, at the same time absorb the advantages of D60A-8, The TY160 crawler type bulldozer has been developed by the domestic design.
| Name | Remarks | Specifications |
| Overall size of the machine（mm） | Straight shovel, traction rod | 5128×3416×3120 |
| Straight shovel, three toothed soil loosen | 6215×3416×3120 | |
| The use quality of the whole machine（kg） | Straight shovel, traction rod | 17100 |
| Straight shovel, three toothed soil loosen | 18700 | |
| Maximum traction power (kN) | 148 | |
| Minimum turning radius (mm) | 3100 | |
| Maximum climbing performance (°) | 30 | |
| Minimum ground clearance (mm) | 400 | |
| Average ground specific pressure (MPa) | 0.065 | |
| Forward speed (km/h) | F1 | 3.1 |
| F2 | 5.47 | |
| F3 | 9.07 | |
| Back speed (km/h) | R1 | 4.03 |
| R2 | 7.12 | |
| R3 | 11.81 | |
| Tracked ground length (mm) | 2430 | |
| Caterpillar center distance (mm) | 1880 | |
| Production efficiency (m3/h) | 30m distance | 350 |
| Engine | ||
| Model | Weichai WD10G178E25 | |
| type | Water cooling,straight line,four stroke,direct injection | |
| The number of cylinder – bore * stroke (mm) | 6－126×130 | |
| Rated power (kW) | 131 | |
| Rated speed (r/min) | 1850 | |
| Maximum torque (N.m/r/min) | 830/1000～1200 | |
| Fuel consumption rate (g/kW.h) | ≤210 | |

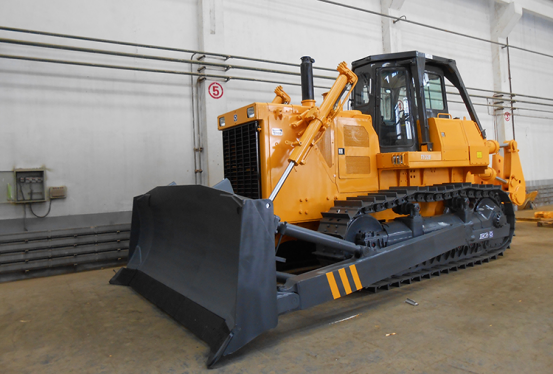

XCMG TY230 217HP crawler bulldozer
* The machine features reasonable layout, excellent performance and advanced technology.
* Higher engine power reserves efficiency, bigger torque output, lower fuel consumption, while better reliability.
* Hydraulicly controlled drive, automatically speed regulating and non-stop gear shifting.
* The final drive uses triangle Spline and tip relief, crowned gear drive to enhance the balance and the stability of the load of transmission Part.
* The novel hexahedral cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
Professional power
* Pulse exhaust manifold for improving performance and emission.
* With a high torque reserve and a low speed under the maximum torque condition for a good adaptation.
* High quality cast iron and special designed valve guide for the seal performance and durability.
* Robust and precise balance design for crankshaft.
* Advanced turbocharger and water cooler technology.
* 4 valves per cylinder for high power and low fuel consumption.
| Specification/Blade type | Straight-tilt | Angle | U-Blade |
| Operating Weight(kg) | 17400 | 17700 | 17900 |
| Min.Ground Clearance(mm) | 400 | 400 | 400 |
| Min.Tuming Radius(m) | 3.2 | 3.2 | 3.2 |
| Ground Pressure(MPa) | 0.069 | 0.070 | 0.071 |
| Track Gauge(mm) | 1880 | 1880 | 1880 |
| Max.Pulling Force(KN) | 142 | 142 | 142 |
| Grade Ability(°) | 30 | 30 | 30 |
| Blade Capacity(m³) | 4.5 | 4.3 | 8.6 |
| Blade WidthxHeight(mm) | 3416×1145 | 3970×1037 | 4061×1386 |
| Max.Lift(mm) | 1110 | 1095 | 1095 |
| Max.Depth(mm) | 530 | 545 | 545 |
| Max.tilt Adjustment(mm) | ≥860 | ≥400 | ≥400 |
| Pitch Adjustment(°) | 55 | 55 | 55 |
| Capability(m³/H)(Theoreticalvalue 40m) | 247 | 247 | 260 |
| Weight Of Blade(kg) | 2350 | 2450 | 2560 |

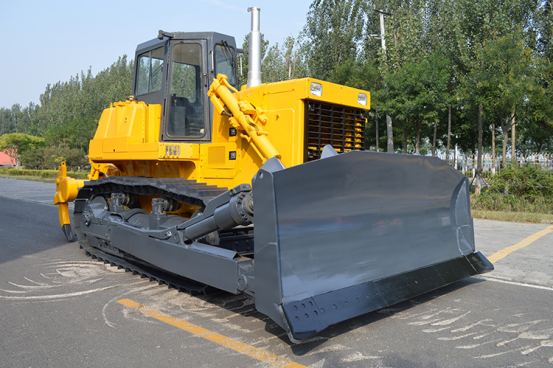

XCMG TY320 320HP crawler bulldozer
* The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.
* The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.
* It can realize the automatic diagnosis and whole-process monitoring of the malfunctions. The integrally injection molded instrument panel integrates the A/C, electric devices, and instruments, featuring beautiful appearance and high grade.
* The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bendingmoment and the high quality welds guarantee the life cycle of the main frame.
| Engine | Model | Cummins NTA855-C360 |
| Type | Turbocharged,aftercooled,Four Stroke | |
| Rated power (kW) | 345HP (257KW) | |
| Rated speed (r/min) | 2000 | |
| Starting method | Electric starting 24V 11kW | |
| Battery | 24V(12Vx2) | |
| Min fuel consumption ratio(min) | 207 | |
| Hydraulic system of work equipment | Working pressure (Mpa) | 14 |
| Rated flow (L/min) (1795r/min) | 360 | |
| Track | Track pitch (mm) | 228.6 |
| Track width (mm) | 560 | |
| No. of track shoes(each side) | 41 | |
| Length of track on ground (mm) | 3150 | |
| Track gauge (mm) | 2140 |
SHANTUI bulldozer 220 hp SD22
The SD22 is a large horsepower, advanced technology bulldozer. An exhaust turbocharger ensures uninterrupted performance at altitudes up to 3200m. Hydraulic drive and control technology deliver reliable performance and easy control.
| Engine | Model & type | Cummins NT855-C280S10; In-line, water cooled 4-cycle, overhead valve direct injection, turbocharged diesel |
||
| Horsepower | Gross power: 175/235/1800 kW/HP/rpm // Net power: 162/220/1800 kW/HP/rpm |
|||
| Number of cylinders | 6—139.7 x 152.4 mm (bore x stroke) | |||
| Piston displacement | 14.01 L | |||
| Min. fuel consumption | 205 g/kW·h | |||
| Maximum torque | 1030 N·m@1250rpm | |||
| Power transmission system | Torque converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Planetary gear, multi-disc clutch, power shift, forced lubrication | |||
| Main drive | Spiral bevel gear, splash lubrication, single-stage speed reduction |
|||
| Steering clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control |
|||
| Steering brake | Wet, floating band, foot brake with hydraulic booster | |||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| Travel speed | Gear | 1st | 2nd | 3rd |
| Forward | 0~3.6 km/h | 0~6.5 km/h | 0~11.2 km/h | |
| Reverse | 0~4.3 km/h | 0~7.7 km/h | 0~13.2 km/h | |
| Undercarriage system |
Type | Swing type of sprayed beam, suspended structure of equalizer bar |
||
| Carrier rollers | 2 each side | |||
| Track rollers | 6 each side | |||
| Track type | Assembled, single-grouser | |||
| Width of track shoes | 560/610/660 mm | |||
| Pitch | 216 mm | |||
| Hydraulic System |
Maximum pressure | 14 MPa | ||
| Pump type | Gear pump | |||
| Discharge | 262 L/min | |||
| Bore of working cylinder × no. | 120 mm × 2 | |||
| Blade | Blade Type | Straight-tilt | Angle | U-blade |
| Dozing capacity | 6.4 m 3 | 4.7 m 3 | 7.5 m 3 | |
| Efficiency (Theoretical value 40 m) |
330 m 3 /h | 245 m 3 /h | 391 m3/h | |
| Blade width | 3725 mm | 4365 mm | 3800 mm | |
| Blade height | 1315 mm | 1055 mm | 1343 mm | |
| Maximum drop below ground | 540 mm | 535 mm | 540 mm | |
| Lifting height of blade | 1210 mm | 1290 mm | 1210 mm | |
| Weight of blade | 2830 kg | 3254 kg | 3419 kg | |
| Riipper (Optional) |
Maximum digging depth of 3-shank ripper |
666 mm | ||
| Maximum lift above ground | 555 mm | |||
| Weight of 3-shank ripper | 2495 kg | |||
| Maximum digging depth of single ripper |
695 mm | |||
| Maximum lift above ground | 515 mm | |||
| Weight of single ripper | 2453 kg | |||
320HP SHANTUI Bulldozer SD32
The SD32 provides a showcase for Shantui’s prowess with high-efficiency push factors. These medium-sized,but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and efficiently. SD32 are equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provide reliable performance and convenient and flexible operation.
| Engine | Model & type | Cummins NTA855-C360S10; In-line, water-cooled; 4-cycle, overhead valve direct injection, turbocharged diesel |
||
| Rated revolution | 2000 rpm | |||
| Horsepower | Gross power: 257/345/2000 kW/HP/rpm // Net power: 235/320/2000 kW/HP/rpm |
|||
| Number of cylinders | 6—139.7 x 152.4 (mm x stroke) | |||
| Piston displacement | 14010 ml | |||
| Min. fuel consumption | 245 g/kW·h | |||
| Maximum torque | 1440 N·m@1400rpm | |||
| Power transmission system |
Torque converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Planetary gear, multi-disc clutch, power shift, forced lubrication |
|||
| Main drive | Spiral bevel gear, splash lubrication, single-stage speed reduction |
|||
| Steering clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control |
|||
| Steering brake | Wet, floating band, foot brake with hydraulic booster | |||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| Travel speed | Gear | 1st | 2nd | 3rd |
| Forward | 0~3.6 km/h | 0~6.6 km/h | 0~11.5 km/h | |
| Reverse | 0~4.4 km/h | 0~7.8 km/h | 0~13.5 km/h | |
| Undercarriage system |
Type | Swing type of sprayed beam, suspended structure of equalizer bar | ||
| Carrier rollers | 2 each side | |||
| Track rollers | 7 each side (single flange 5, double flange 2) | |||
| Track type | 41 each side | |||
| Width of track shoes | 560 mm | |||
| Pitch | 228.6 mm | |||
| Hydraulic System |
Maximum pressure | 14 MPa | ||
| Pump type | Gear pump | |||
| Discharge (at revolution of 2000 rpm) |
355 (1795 rpm) L/min | |||
| Bore of working cylinder × no. (double-acting type) |
140 mm × 2 | |||
| Blade | Blade Type | Straight-tilt | Angle | Semi-U blade |
| Dozing capacity | 10 m 3 | 6 m 3 | 11.9 m 3 | |
| Efficiency (Theoretical value 40 m) |
580 m 3 /h | 350 m 3 /h | 690 m 3 /h | |
| Blade width | 4130 mm | 5000 mm | 4130 mm | |
| Blade height | 1590 mm | 1140 mm | 1710 mm | |
| Maximum drop below ground | 560 mm | 630 mm | 560 mm | |
| Maximum tilt adjustment | 1000 mm | 500 mm | 1000 mm | |
| Weight of blade | 4520 kg | 4932 kg | 4924 kg | |
| Riipper (Optional) |
Maximum digging depth of 3-shank ripper |
842 mm | ||
| Maximum lift above ground | 883 mm | |||
| Weight of 3-shank ripper | 3802 kg | |||
| Maximum digging depth of single ripper |
1250 mm | |||
| Maximum lift above ground | 965 mm | |||
| Weight of single ripper | 3252 kg | |||
We supply all the models of XCMG and SHANTUI bulldozers, like TY160, TY230, TY320, TY410, DL350, DL560, SD16, SD16F, SD22, SD32, DH13K, DH17, SD90-5, etc.
If you would like to know more details and products, please contact us!
