product description
Earth-moving machinery that uses scrapers to level the ground. The scraper is installed between the front and rear axles of the machine and can lift, tilt, rotate and extend. The action is flexible and accurate, the operation is convenient, and the leveling site has high precision. It is suitable for constructing roadbeds and road surfaces, building side slopes, digging side ditches, mixing road mixtures, sweeping snow, pushing loose materials, and carrying out soil road construction. Maintenance of gravel roads.
Motor graders are the main machinery used for shaping and leveling operations in earthwork, and are widely used for large-area ground leveling operations such as highways and airports. The reason why the grader has a wide range of auxiliary work capabilities is that its scraper can complete a 6-degree movement in space. They can be carried out individually or in combination. The grader can provide sufficient strength and stability for the subgrade during subgrade construction. It is an important equipment in the construction of national defense engineering, mine construction, road construction, water conservancy construction and farmland improvement.
main model introduction
GR100 102hp 7ton mini motor grader
Advantages and Highlights:
1. GR100 adopts famous Brand 4BTA3.9-C100-II (SO11847) turbocharged diesel engine with large output torque and power reserve coefficient and low fuel consumption.
2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
3. The drive axle is a dedicated XCMG axle.
| Item | GR100 |
| Engine model | J-XZGR100-4BT3.9 |
| Rated power/speed | 75(2400r/min) |
| Overall dimension (standard) | 6880*2375*3150mm |
| Total weight (standard) | 7000kg |
| Tire specification | 16/70-24 |
| Ground clearance (front axle) | 550mm |
| Tread | 1900mm |
| Space of front and rear axles | 4885 mm |
| Forward velocity | 5,8,11,17,24,38km/h |
| Reverse speed | 5,11,24km/h |
| Tractive effort f=0.75 | 39.2N |
| Maximum gradeability | 20% |
| Tire inflation pressure | 300kPa |
| Working system pressure | 16MPa |

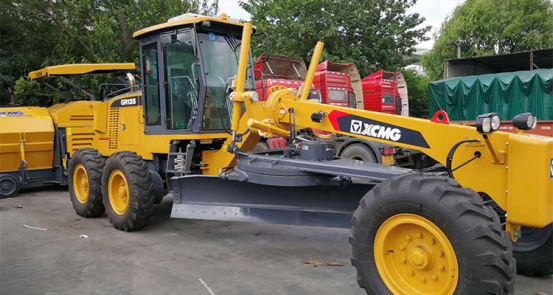

135hp GR135 11ton motor grader
The GR135 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farm-lands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
GR135 adopt Dongfeng 6BT5.9-C130- II turbocharged diesel engine, Large output torque and power reserve coeficient and low oil consumption.
| Item | GR135 | ||
| Basic parameters | Engine model | 6BT5.9-C130-Ⅱ | |
| Rated power/speed | 97(2200r/min) | ||
| Overall dimension (standard) | 8015*2380*3050mm | ||
| Total weight (standard) | 11000kg | ||
| Tire specification | 13.00-24 | ||
| Ground clearance (front axle) | 515mm | ||
| Tread | 2020mm | ||
| Space of front and rear axles | 5780 mm | ||
| Performance parameters | Forward velocity | 5、8、13、20、30、42km/h | |
| Reverse speed | 5、13、30km/h | ||
| Tractive effort f=0.75 | 61.3kN | ||
| Maximum gradeability | 20% | ||
| Tire inflation pressure | 300kPa | ||
| Working system pressure | 16MPa | ||
| Transmission pressure | 1.3—1.8Mpa | ||
| Working parameters | Maximum steering angle of front wheel | ±49° | |
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | ±16° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | 6.6m | ||
| Scrape knife | Maximum lift height | 410mm | |
| Maximum cutting depth | 515mm | ||
| Maximum tilt angle | 90° | ||
| Cutting angle | 54°—90° | ||
| Angle of revolution | 360° | ||
| Length & chord height | 3660*610mm | ||

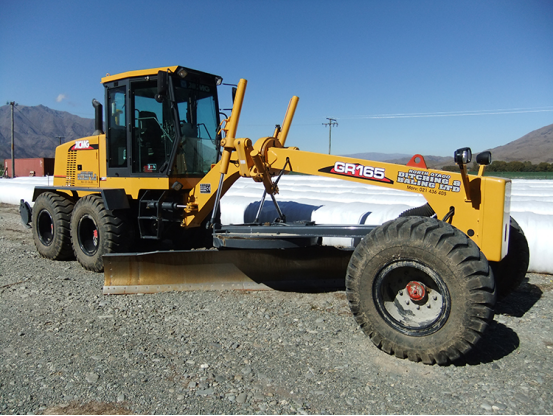

GR165 165HP 15ton road motor grader
Rear axle main drive is equipped with “NO-SPIN” without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
| Item | GR165 | ||
| Basic parameters | Engine model | 6BTA5.9-C180-Ⅱ | |
| Rated power/speed | 130kW/2200rpm | ||
| Overall dimension (standard) | 8900*2625*3470mm | ||
| Total weight (standard) | 15000kg | ||
| Tire specification | 17.5-25 | ||
| Ground clearance (front axle) | 430mm | ||
| Tread | 2156mm | ||
| Space of front and rear axles | 6219 mm | ||
| Performance parameters | Forward velocity | 5、8、11、19、23、38km/h | |
| Reverse speed | 5、11、23km/h | ||
| Tractive effort f=0.75 | 77kN | ||
| Maximum gradeability | 25% | ||
| Tire inflation pressure | 260kPa | ||
| Working system pressure | 16MPa | ||
| Transmission pressure | 1.3—1.8Mpa | ||
| Working parameters | Maximum steering angle of front wheel | ±50° | |
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | ±15° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | 7.3m | ||
| Scrape knife | Maximum lift height | 450mm | |
| Maximum cutting depth | 500mm | ||
| Maximum tilt angle | 90° | ||
| Cutting angle | 28°—70° | ||
| Angle of revolution | 360° | ||
| Length & chord height | 3660*610mm | ||
GR180 190HP motor grader
1. Famous brand Engine, ZF Technology Gearbox, and XCMG Drive Axle make the drive system power matching more reasonable and reliable.
2. Double-circuit hydraulic brake system makes the brake more reliable and stable.
3. Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system.
4. Use XCMG special enhanced work devices.
5. The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material.
6.Various options expand the machine’s performance and working range.
| Item | GR180 | ||
| Basic parameters | Engine model | 6CTA8.3-C190-Ⅱ | |
| Rated power/speed | 142kW/2200rpm | ||
| Overall dimension (standard) | 8900x2625x3420 | ||
| Total weight (standard) | 15400 kg | ||
| Tire specification | 17.5-25 | ||
| Ground clearance (front axle) | 430mm | ||
| Tread | 2156mm | ||
| Space of front and rear axles | 6219 mm | ||
| Space of middle and rear wheels | 1538 mm | ||
| Performance parameters | Forward velocity | 5､8､11､19､23､38km/h | |
| Reverse speed | 5､11､23km/h | ||
| Tractive effort f=0.75 | ≥79 kN | ||
| Maximum gradeability | ≥25% | ||
| Tire inflation pressure | 260kPa | ||
| Working system pressure | 18MPa | ||
| Transmission pressure | 1.3—1.8Mpa | ||
| Working parameters | Maximum steering angle of front wheel | ±50° | |
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | ±15° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | 7.3m | ||
| Scrape knife | Maximum lift height | 450mm | |
| Maximum cutting depth | 500mm | ||
| Maximum tilt angle | 90° | ||
| Cutting angle | 28°—70° | ||
| Angle of revolution | 360° | ||
| Length & chord height | 3965x610mm | ||

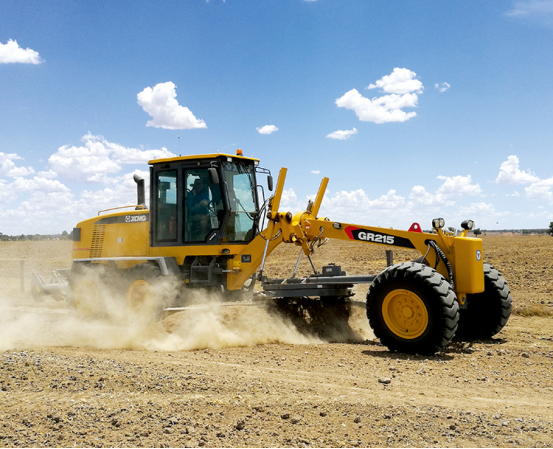

GR215 215HP motor grader
GR215 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland. The grader is necessary engineering machinery for national defense construction, mine construction, urban and rural road construction, water conservancy construction and farmland improvement, etc.
| Item | GR215 | ||
| Basic parameters | Engine model | 6CTA8.3-C215 | |
| Rated power/speed | 160kW/2200rpm | ||
| Overall dimension (standard) | 8970*2625*3420mm | ||
| Total weight (standard) | 16500 kg | ||
| Tire specification | 17.5-25 | ||
| Ground clearance (front axle) | 430mm | ||
| Space of front and rear axles | 6219 mm | ||
| Space of middle and rear wheels | 1538 mm | ||
| Performance parameters |
Forward velocity | 5,8,11,19,23,38km/h | |
| Reverse speed | 5,11,23km/h | ||
| Tractive effort f=0.75 | 87 kN | ||
| Maximum gradeability | 20% | ||
| Tire inflation pressure | 260kPa | ||
| Working system pressure | 16MPa | ||
| Transmission pressure | 1.3—1.8Mpa | ||
| Working parameters | Maximum steering angle of front wheel | ±50° | |
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | forwards15°, Reverse15° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | 7.3m | ||
| Scrape knife | Maximum lift height | 450mm | |
| Maximum cutting depth | 500mm | ||
| Maximum tilt angle | 90° | ||
| Cutting angle | 28°—70° | ||
| Angle of revolution | 360° | ||
| Length & chord height | 4270*610mm | ||
We supply XCMG motor graders, the models including GR100, GR135, GR165, GR180, GR215, GR230, GR260, GR2403, etc.
I f you would like to know more models and details, please contact us!
