HDD Chinese XCMG horizontal directional drilling
products description
Horizontal directional drilling rig is a construction machine that lays a variety of underground utilities (pipes, cables, etc.) without excavating the ground surface. It is widely used in flexible pipelines such as water supply, electricity, telecommunications, natural gas, gas, and oil. During paving construction, it is suitable for sand, clay, and other ground conditions, but not suitable for high groundwater levels and pebble formations. It can be constructed in most non-hard rock areas.

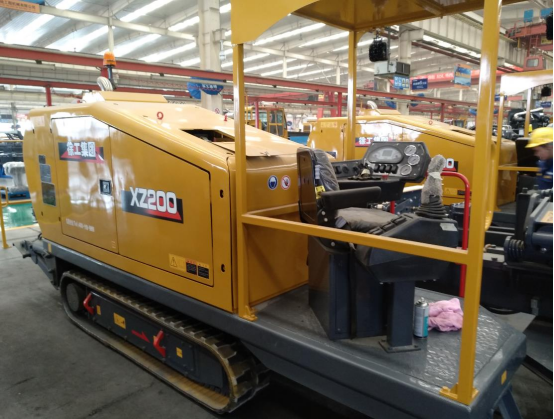

XCMG HDD XZ200 horizontal directional drilling
CMG XZ200 Horizontal directional drilling structure compact, high performance, full-featured, Hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level. They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.
Advantages and Highlights
- Strong power: Cummins 6BTAA5.9-C150 Engine 112kW horsepower engine is adopted to ensure that the drilling rig can complete pipe laying operations under all kinds of complicated geological conditions.
- Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
- Stable chassis support, using the classical H type beam structure, quality rubber track, frog Outrigger, provides a strong guarantee for the stability of construction.
- Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices, can also be optioned more Eco Saving Cummins with EU Stage 3A.
- Automatic handling device of drill rod: This can improve efficiency, and reduce the operators’ labor intensity and the number of construction personnel.
- Support the diverse needs of customers, the machine can be increased with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, freezing mud, mud washing and other devices, can also optional more environmentally friendly.
specification
| Description | Unit | Parameter value | ||
|
Engine |
Manufacturers | Dongfeng Cummins | ||
| China III | Model | QSB5.9-C150 | ||
| Rated Power | kW /(r/min) | 113 / 2200 | ||
| China II | Model | 6BTAA5.9-C150 | ||
| Rated Power | kW /(r/min) | 112/ 2200 | ||
| China III | Model | QSB4.5-C160 | ||
| EU Stage IIIA | Rated Power | kW /(r/min) | 119/2200 | |
| Thrust-Pull | Type | Pinion and rack drive | ||
| Max thrust-pull force | kN | 225/225 | ||
| Max thrust-pull speed | m/min | 26 | ||
| Rotation | Type | two motor | ||
| Torque | N·m | 6350 | ||
| Max spindle speed | r/min | 160 | ||
| Loader Crance |
/ |
/ | ||
| Max inclination angle |
° |
22 | ||
| Pipe | Diameter × Length | mm×mm | Φ60×3000 | |
| Mud pump | Max Flow rate | L/min | 250 | |
| Max pressure | MPa | 8 | ||
| Weight |
kg |
8500 | ||

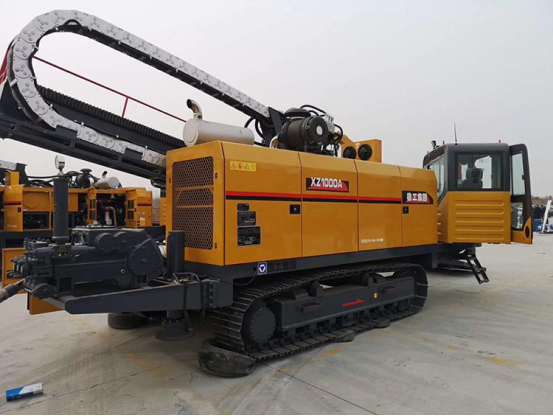

XCMG HDD horizontal directional drilling machine XZ1000A
1, The gear and rack transmission makes stability and reliability, Carriagespindle floating toto protect the drill pipe thread and improve the service life of the rods.
2, Elastic equilibrium release technology is to avoid device damaging when pulling pipeline back, which increase the reliability.
3, Wire guided walking system makes moving safe.
4, Mud flux stepless speed regulation saves mud and reduce pollution.
5, Cab’s 45 ° rotation enhances comfortable operation.
| Description | Unit | Parameter value | ||
| Engine | China III | Model | QSL8.9-C360 | |
| Rated Power | kW /(r/min) | 264 / 2100 | ||
| China II | Model | 6BTAA8.9-C360 | ||
| Rated Power | kW /(r/min) | 264/ 2200 | ||
| Thrust-Pull | Max thrust-pull force | kN | 1075 | |
| Max thrust-pull speed | m/min | 35 | ||
| Rotation | Torque | N·m | 43000 | |
| Max spindle speed | r/min | 100 | ||
| Loader Crance | Max. Lifting weight | t | 2 | |
| Loading capacity | t·m | 4 | ||
| Max inclination angle | ° | 18 | ||
| Travel driving | Type | Self-propelled crawler | ||
| Traveling speed | Km/h | 2.5 | ||
| Pipe | Diameter × Length | mm×mm | Φ127×6000 | |
| Mud pump | Max Flow rate | L/min | 600 | |
| Weight | kg | 23000 | ||
We also have many other models, like ZS360E, XE420E, XZ450, XZ680A, XZ1600, XZ2200, XZ2860, XZ13600, etc.
If you would like to know more details and products, please contact us!
