products description
An excavator is an earth-moving machine that uses a bucket to excavate materials above or below the bearing surface and load it into a transport vehicle or unload it to a stockyard.
details information

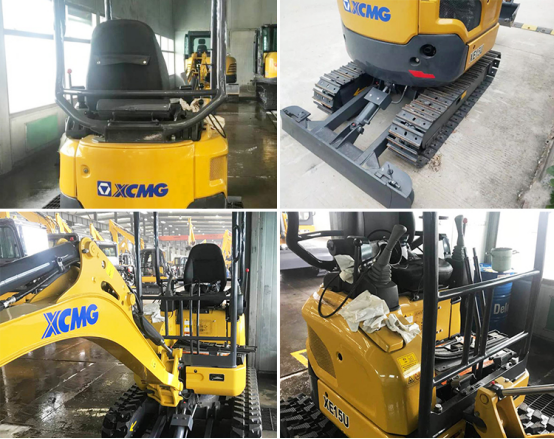

XCMG XE15U Mini Crawler Excavator
XE15U hydraulic excavator uses a mechanical injection oil engine with national II emission standards and has characteristics of strong power, energy conservation and environmental protection, high reliability and excellent performance.
Description | Unit | Parameter value | |
Operating weight | Kg | 1795 | |
Bucket capacity | m³ | 0.04 | |
Engine | Model | / | D782-E3B-CBH-1 |
No. of cylinders | / | 3 | |
Output power | kw/rpm | 9.8/2300 | |
torque/speed | N.m | 44.5/1800 | |
Displacement | L | 0.778 | |
Hydraulic system | Travel speed(H/L) | km/h | 4.3/2.2 |
Gradeability | ° | 30° | |
Pressure of prime valve | MPa | 22 | |
Pressure of travel system | MPa | 22 | |
Pressure of swing system | MPa | 11 | |
Pressure of pilot system | MPa | 3.9 | |
Oil Capacity | Fuel tank capacity | L | 18 |
Hydraulic tank capacity | L | 17 | |
Engine oil capacity | L | 3.8 | |
Appearance size | Overall length | mm | 3560 |
Overall width | mm | 1240 | |
Overall height | mm | 2348 | |
Width of platform | mm | 990 | |
Overall width of chassis | mm | 990/1240 | |
Width of crawler | mm | 230 | |
Track length on ground | mm | 1270 | |
Crawler gauge | mm | 760/1010 | |
Clearance under counterweight | mm | 450 | |
Min. ground clearance | mm | 145 | |
Working scope | Min. tail swing radius | mm | 620 |
Max. digging height | mm | 3475 | |
Max. dumping height | mm | 2415 | |
Max. digging depth | mm | 2290 | |
Max. vertical wall digging depth | mm | 1750 | |
Max. digging reach | mm | 3900 | |
Min. swing radius | mm | 1530 | |
Standard | Length of boom | mm | 1690 |
Length of arm | mm | 1100 | |
Bucket capacity | m³ | 0.04 |

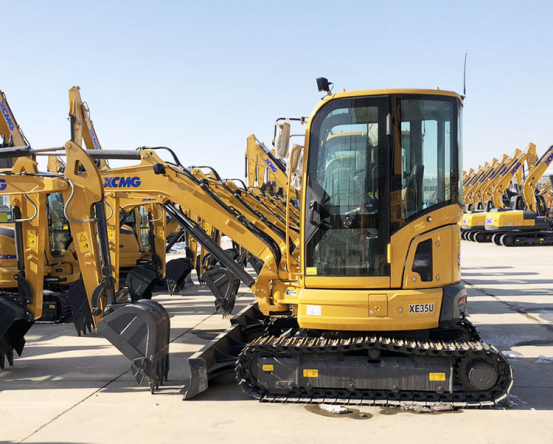

XCMG XE35U 1.64 ton small crawler excavator
XE35U crawler excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.
Model | Metric unit | XE35U | |
Operating weight | kg | 4200 | |
Bucket capacity | m3 | 0.11 | |
Engine | Output power | kW/ r/min | 21.6/2400 |
torque/speed | N.m | 107.2/1444 | |
Displacement | L | 1.642 | |
Main performance | Travel speed(H/L) | km/h | 3.6/2.2 |
Gradeability | % | 58 | |
Rotating speed | r/min | 8.5 | |
Ground pressure | kPa | 36.6 | |
Bucket digging force | kN | 24.6 | |
Arm crowd force | kN | 17.8 | |
Appearance size | Overall length | mm | 4960 |
Overall width | mm | 1740 | |
Overall height | mm | 2535 | |
Width of platform | mm | 1585 | |
Length of crawler | mm | 2220 | |
Overall width of chassis | mm | 1740 | |
Width of crawler | mm | 300 | |
Track length on ground | mm | 1440 | |
Crawler gauge | mm | 1721 | |
Clearance under counterweight | mm | 587 | |
Min. ground clearance | mm | 297 | |
Min. tail swing radius | mm | 870 | |
Working scope | Max. digging height | mm | 5215 |
Max. dumping height | mm | 3760 | |
Max. digging depth | mm | 3060 | |
Max. vertical wall digging depth | mm | 2260 | |
Max. digging reach | mm | 5415 | |
Min. swing radius | mm | 2170 |

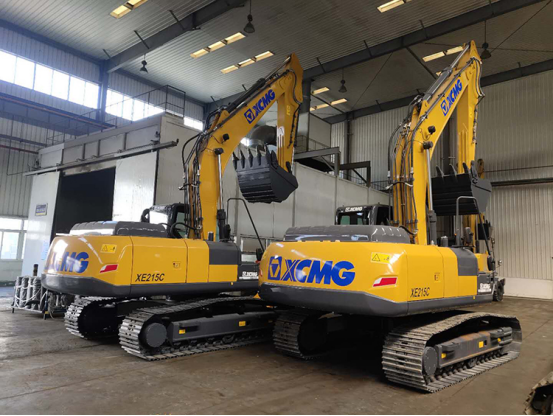

XE215C 21.5ton hydraulic crawler excavator
XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on. It has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.
Engine |
Model | ISUZU CC-6BG1TRP |
Equipped |
Electronic fuel injection | |
Four strokes | ||
Water cooling | ||
Turbo-charging | ||
Air to air intercooler | ||
No. of cylinders | 6 | |
Output power | 128.5/2100 kW/rpm | |
Torque/speed | 637/1800 N.m/rpm | |
Displacement | 6.494 L | |
Operation Weight | 21700 kg | |
Bucket Capacity | 0.9—1.0 m ³ | |
Main performance |
Travel speed(H/L) | 5.5/3.3 km/h |
Rotating speed | 13.3 r/min | |
Gradeability | ≤35° | |
Ground pressure | 47.2 kPa | |
Bucket digging force | 149 kN | |
Arm digging force | 111 kN | |
Maximum traction | 184 kN | |
Working scope |
Max. digging height | 9620 mm |
Max. dumping height | 6780 mm | |
Max. digging depth | 6680 mm | |
Excavation depth of 8 feet level | 6500 mm | |
Max. vertical wall digging depth | 5715 mm | |
Max. digging reach | 9940 mm | |
Min. swing radius | 3530 mm |

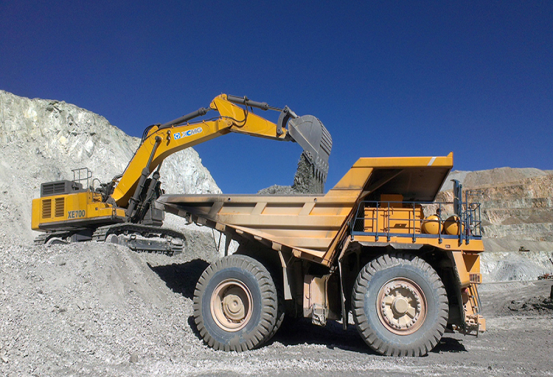

XCMG XE700D Large Crawler Excavator
Description | Unit | Parameter value | |
Operating weight | kg | 69000 | |
Bucket capacity | m³ | 2.4-4.6 | |
Engine | Model | Engine | QSX15 |
Direct injection | — | √ | |
Four strokes | — | √ | |
Water cooling | — | √ | |
Turbo-charging | — | √ | |
Air to air intercooler | — | √ | |
No. of cylinders | — | 6 | |
Output power | kW/ r/min | 336/1800 | |
torque/speed | N.m | 2102/1400 | |
Displacement | L | 15 |

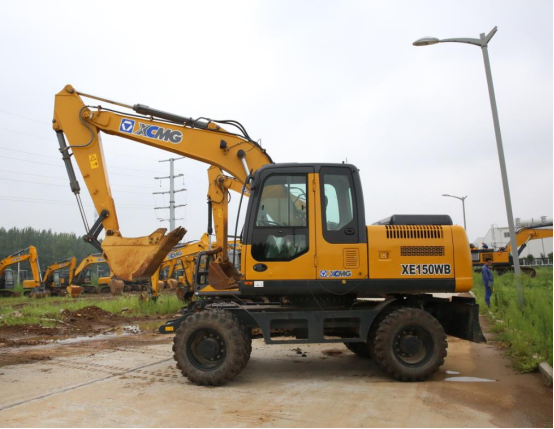

15 ton XE150WB hydraulic wheel excavator
XE150WB has used a new generation of independent researched and developed controllers as well as a low-noise pump and especially considered the matching between the engine and the low-speed load to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts. As a model featuring sufficient flexibility, high fuel efficiency and operation reliability in accordance with the North America and Euro-III emission standards, this machine can be provided with optional one-section/two-section boom working mechanisms and multi-functional implements, able to be widely used in municipal construction, highway bridges, housing construction, road engineering, construction of water conservancy works, new rural construction, general construction projects and other small and medium earthwork projects.
Engine model | / | QSB4.5 |
Output power of engine | Kw/r/min | 104/2000 |
Max.torque/engine | N.m | 586 |
Displacement | L | 4.5 |
Fuel tank capacity | L | 250 |
Rated flow of main pump | L/min | 2×160 |
Pressure of main safety valve | Mpa | 31.4/34.3 |
Hydraulic tank capacity | L | 135 |
Slewing speed | r/min | 13.7 |
Digging capacity of tcuket | KN | 60 |
Digging capacity of tcuket rod | KN | 65 |
Min.turning radius | mm | 6500 |
Travel speed | Km/h | |
Gradient capability | % | 70 |
A Total length | mm | 6482 |
B Total width | mm | 2552 |
C Total heigth | mm | 3158 |
Counterweight ground clearance | mm | 1230 |
Min.ground clearance | mm | 359 |
Min.tail swing radius | mm | 2300 |
Wheelbase | mm | 2800 |
Track gauge | mm | 1920 |
Total width of chassis | mm | 2495 |
Distance between front axle and turning center | mm | 1700 |
Hood height | mm | 2430 |
The maximum digging depth of dozer | mm | 112 |
We supply all the models of XCMG crawler excavators and wheel excavators, including XE15U, XE35U, XE40, XE55D, XE60D, XE60WA, XE75D, XE80D, XE135B, XE135D, XE150D, XE150WB, XE200D, XE215C, XE215CLL, XE215D, XE235C, XE240, XE260CLL, XE305D, XE355C, XE370CA, XE470D, XE700D, etc.
If you would like to know more details and products, please contact us!
