Short Description:

Railway wagons take goods as the main transportation object, and can be divided into general freight cars and special freight cars according to their uses. General-purpose trucks refer to vehicles suitable for transporting a variety of goods, such as gondola cars, box cars, flat cars, etc. Special trucks refer to vehicles that transport a certain kind of goods, such as coal trucks, container trucks, bulk cement trucks, etc.


Product Detail

Product Tags

product description

Railway wagons take goods as the main transportation object, and can be divided into general freight cars and special freight cars according to their uses. General-purpose trucks refer to vehicles suitable for transporting a variety of goods, such as gondola cars, box cars, flat cars, etc. Special trucks refer to vehicles that transport a certain kind of goods, such as coal trucks, container trucks, bulk cement trucks, etc.

detail information

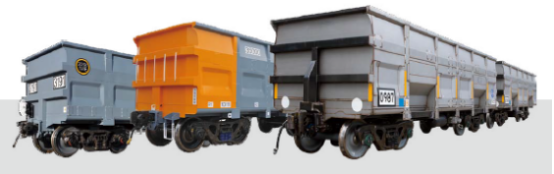

Open wagon

Open wagon is a truck with ends, side walls and no roof. It is mainly used to transport coal, ore, mining materials, wood, steel and other bulk goods, and can also be used to transport small-weight machinery and equipment. If the goods are covered with waterproof canvas or other awnings, they can replace the boxcars to carry goods that are afraid of rain, so the gondola has great versatility.

Open wagons can be divided into two categories according to different unloading methods: one is a general-purpose gondola suitable for manual or mechanical loading and unloading operations; the other is suitable for line-up and fixed group transportation between large industrial and mining enterprises, stations, and wharves, using wagon dumpers unloading goods.

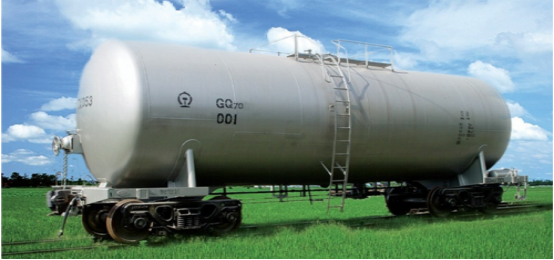

Tank wagon

Tank wagon is a tank-shaped vehicle used to carry various liquids, liquefied gases, and powdered goods. These goods include gasoline, crude oil, various viscous oils, vegetable oils, liquid ammonia, alcohol, water, various acid-base liquids, cement, lead oxide powder, etc. There is a volume scale in the tank which indicates the loading capacity.

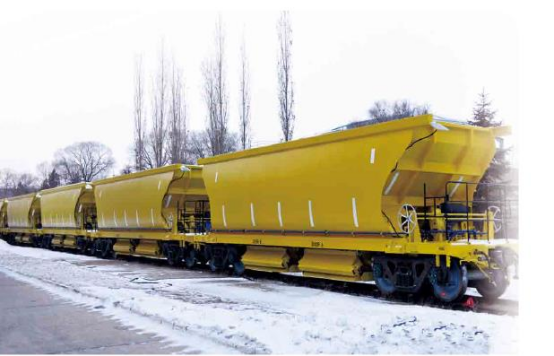

 Hopper wagon

Hopper wagon is a special truck derived from a boxcar, used to transport bulk grains, fertilizers, cement, chemical raw materials and other bulk cargoes that are afraid of moisture. The lower part of the car body is equipped with a funnel, the side walls are vertical, there are no doors and windows, the lower part of the end wall is inclined inward, the roof is equipped with a loading port, and there is a lockable cover on the port. The bottom door of the funnel can be opened and closed manually or mechanically. Open the bottom door, and the cargo will be discharged automatically by its own gravity.

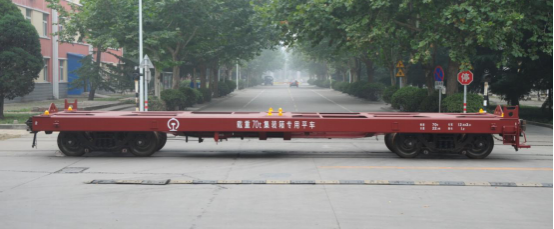

Flat wagon

The flat wagon is used to carry long cargo such as logs, steel, construction materials, containers, machinery and equipment, etc. The flat car only has the floor but not the side walls, end walls and roof. Some flat wagons are equipped with side panels and end panels that are 0.5 to 0.8 meters high and can be laid down. They can be erected when needed to facilitate the loading of some goods that are usually transported by open wagons.

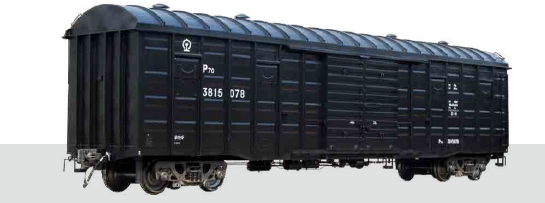

Box wagon

Box wagon is a wagon with side walls, end walls, floors and roofs, and doors and windows on the side walls, used to transport goods that are afraid of sun, rain, and snow, including all kinds of grains and daily industrial products And valuable equipment, etc. Some boxcars can also transport people and horses.

If you would like to know more details and products, please contact us!
