Sanitation truck road sweeper garbage truck watering cart

Short Description:

Our street sweeper is equipped with two filters of primary filter and stainless steel filter, which is very convenient for quick cleaning without any tools.

Send email to us

Product Detail

Product Tags

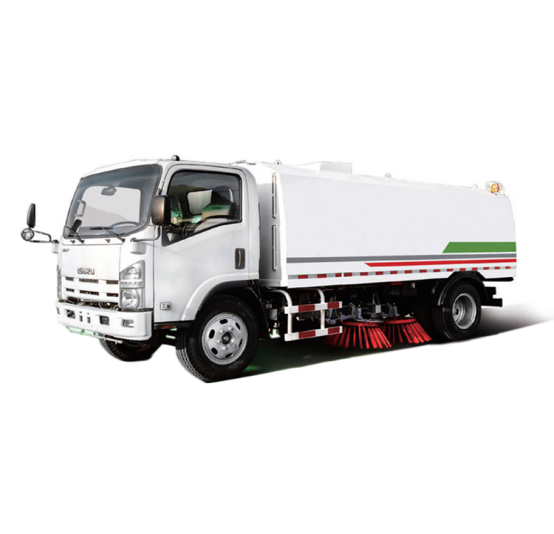

street sweeper

Our street sweeper is equipped with two filters of primary filter and stainless steel filter, which is very convenient for quick cleaning without any tools.
2. You just need a wrench and then you can dismount all the mechanical parts of our sweeper, which is very convenient for maintenance.
3. The front sweeper brush is equipped with fender system to prevent damage of brush when accident impaction happens.
4. The sweeper can dump trash into the road standard trash containers and therefor it can keep continuous working.

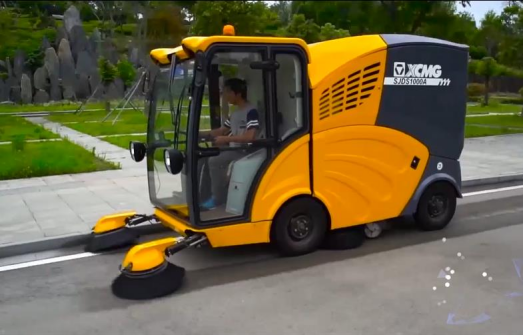

Small road sweeper:

Items		Unit	Number
The host	Engine model	-	Perkins 403D-15
	Engine power rating	kW	24.4
	Engine rated speed	r/min	2800
	Engine idle speed	r/min	800
	Maximum speed	km/h	20
	Maximum astern speed	km/h	10
	Capable of climbing with slope	%	22
	Fuel tank capacity	L	60
	Wheelbase	mm	1250
	Wheelbase	mm	860
	Turning radius (outside)	mm	1880
	Minimum ground clearance	mm	140
	Front overhang	mm	810
	Rear overhang	mm	560
	Approach angle	°	20.7
	Departure angle	°	27.7
	2 Brush the maximum sweep width	mm	1200
	3 Brush the maximum sweep width	mm	2100
	Brush diameters	mm	600
	Maximum volume of dustbin	L	500
	Bin effective volume	L	230
	Bin unloading height	mm	1380
	Water tank volume	L	120
	Host suction diameter	mm	150
	Handheld suction diameter	mm	120
	Maximum sweeping speed	km/h	6
	Curb weight	kg	1250
	GVW	kg	1800
	Overall dimensions	mm	3865×1150×1990
Hydraulic system	Hydraulic tank capacity	L	20
Electrical system	Operating system voltage	V	24

Other models:

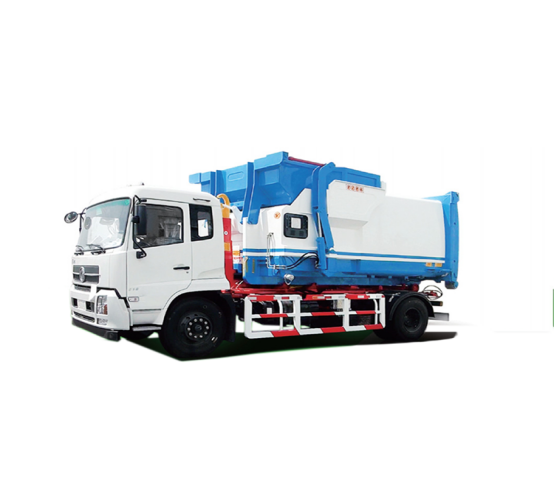

garbage truck

Van unloading type garbage truck including 3T/16T/25T/31T series, the chassis covers domestic famous brands. The top part is mainly composed of a boom, a sub-frame, a removable garbage bin, a power take-off device, a hydraulic system and a circuit. The boom is controlled by the oil passage, and the loading and unloading of the waste bin is realized during the lifting and lowering process of the boom.

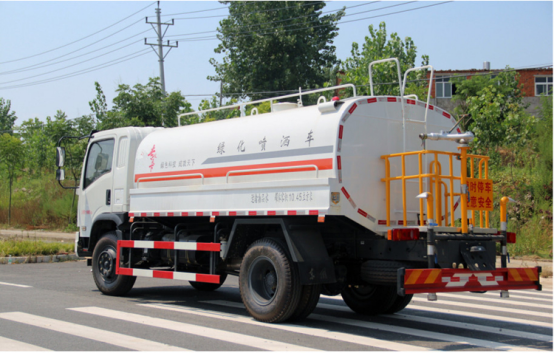

road spray sprinkler

Dust control water truck is designed with water sprinkle and dust control functions and has cold starting device at low temperature and air conditioner, which is mainly applied to municipal sanitation, environmental protection, dust control and lower temperature in mine, yard coal, wharf, steel works, construction sites and so on. Besides, the truck can be used to clean and remove snow in winter.

We also have other kinds of sanitation trucks. If you would like to know more details and products, please contact us!
