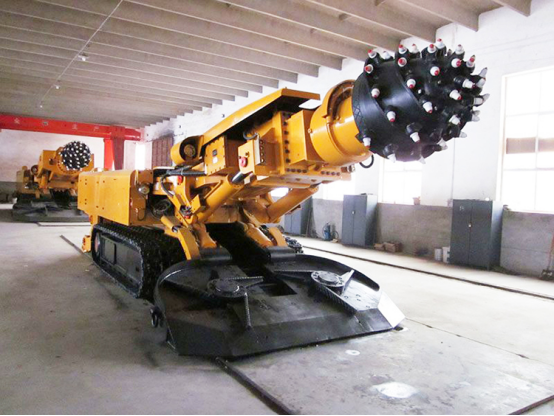

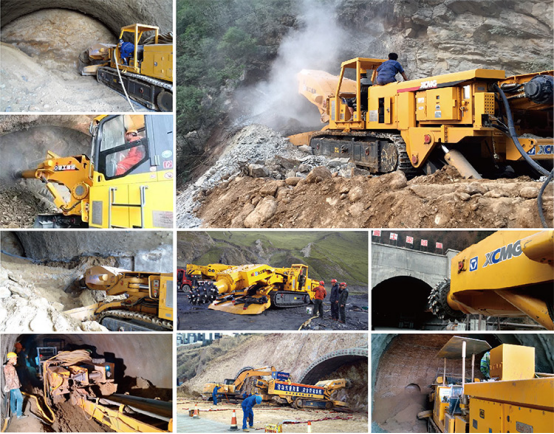

EBZ160 roadheader is designed as compact structure, low body, low center of gravity. easy operation, good working performance.

Send email to us

Product Detail

Electric control systemEBZ160 roadheader adolts flame proof and intrinsically safe switch box and control box with small size, light weight, flexible operation, which is safety and reliable: main controller is installed in a closed casing that can effectively block out electromagnetic interference; working condition is shown with LCD screen, menu mode is used for operating interface with flexible and safe parameter setting; it is equipped with functions such as overvoltage, motor overload, open-phase, short circuit, over temperature and earth leakage lockout.
Hydraulic system The hydraulic system of EBZ160 roadheader adopts transfer case, several pumps control, with main hydraulic components coming from international brands. 3. Spraying system Spraying system of EBZ160 roadheader include inside and outside spray systems, of which the front is after-pick spraying which is used to strength outside spraying, the latter is reasonable in design and equipped with leakage detection function.4. First freighter Straight structure is adopted for first freighter, which can achieve smooth lapping with hauler bed and transportation.5. Traveling mechanism The traveling mechanism is a high integration of internationally advanced motor and reducer, whose big output torque can adapt to operations with large dip angle. If there is limit for weight or total weight during transportation, it can be disassembled for transportation.

Item	EBZ160
Overall weight	47000 kg
dinting undercut	216/200 mm
Ground clearance of machine	250 mm
Height of Range of positioning cutting	4800/4770 mm
Width of Range of positioning cutting	5400/5250 mm
Area of Range of positioning cutting	26/25 m²
Gantry height	400 mm
Compressure strength of coal petrography to be cut	≤80/60 Mpa
Climbing capacity	±18°
Travelling speed	6.5 m/min
Min. turning radius	5247 mm
Grounding pressure	0.148 MPa
Gross power	265 kW
Power of Cutting motor	160/80 kW
Power of pumping stations motor	90 kW
Supply voltage	AC1140/660V
Frequency of supply	50Hz
Rotation speed of cutting head	48/24 r/min
Loading capacity	Star wheel type/4.32 m³/min
Crawler width	520 mm
Out. Width of crawlers	2330 mm
Tensioning style	Cylinder tensioning and snap-gauge locking
Water pressure of outside spraying	≥1.5 MPa
Water pressure of inside spraying	≥3 MPa
Max. non-removable parts size	3.38×1.20×1.52 m
Max. non-removable parts mass	5500 kg

Roadheader EBZ135L

Item	EBZ135L
Overall weight	42000 kg
dinting undercut	295 mm
Ground clearance of machine	180 mm
Height of Range of positioning cutting	4000 mm
Width of Range of positioning cutting	4842 mm
Area of Range of positioning cutting	19.4 m²
Gantry height	370 mm
Compressure strength of coal petrography to be cut	≤70/60 Mpa
Climbing capacity	±18°
Travelling speed	6 m/min
Min. turning radius	—
Grounding pressure	0.131 Mpa
Gross power	225 kW
Power of Cutting motor	135 kW
Power of pumping stations motor	75kW
Supply voltage	AC1140/660V
Frequency of supply	50Hz
Rotation speed of cutting head	38 r/min
Loading capacity	Star wheel type/4.32 m³/min
Crawler width	520 mm
Out. Width of crawlers	2205 mm
Tensioning style	Cylinder tensioning and snap-gauge locking
Water pressure of outside spraying	≥1.5 MPa
Water pressure of inside spraying	≥3 MPa
Max. non-removable parts size	3.41×1.38×1.33 m
Max. non-removable parts mass	4700 kg
