products description

The empty container handler has simple structure, flexible control, good micro-movement, and high explosion-proof safety performance. It is suitable for operations in narrow passages and limited spaces. It is an ideal equipment for loading and unloading pallets in high-bay warehouses and workshops. It can be widely used in petroleum, chemical, pharmaceutical, textile, military, paint, pigment, coal and other industries, as well as ports, railways, freight yards, warehouses and other places containing explosive mixtures for loading, unloading, stacking and handling operations.

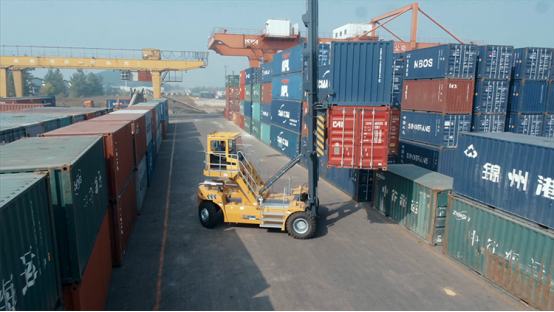

XCH80 is a container empty handling, stacking of special equipment, the maximum lifting capacity of 8t, stacking capacity of 7 layers, flexible products, efficient operation, widely used in ports, yard and other places.

XCH90 empty container handler with highest operation efficiency. Unique low speed large torque optimal transmission chain matched and high power performance contribute to high job site transfer efficiency; with innovative intelligent mast technology, the spreader height can be positioned by “one-key” operation, resulting in working efficiency 18% higher than the competitive products in the industry; three energy-saving measures, such as multi-body dynamic optimization matching technology, flow self-adaptive load sensitive hydraulic system and mast potential energy recovery technology, lead to more fuel-saving.

Intelligent and efficient

Unique low speed large torque optimal transmission chain, high power performance and max. travel speed of 30 km/h contribute to manoeuver ability and quick job site transfer. With innovative intelligent mast technology, the spreader height can be positioned by “one-key” operation, resulting in 18% improvement in working efficiency, leading in the industry.

Safe and free from worryWith accumulation of experience for 75 years in crane safety control and the technologies developed for empty container handlers, such as overturning prevention, driving safety active protection, detection of driver in place, the active safety of the machine during driving and lifting operation are improved to the greatest extent.

Energy-saving and economical

With multi-body dynamic optimization matching technology, flow self-adaptive load sensitive hydraulic system and mast potential energy recovery technology integrated, light weight, low energy loss and energy saving of 5% ~ 20% are available.

Comfortable driving

Ten humanization-oriented designs, such as panorama driver’s cab,man-machine interactive system for providing abundant information, high-power air conditioning and perfect lighting system, etc. offer more comfortable driving and operating environment.

specification

XCH80

Size parameters	XCH80
Full length mm	6522
Full width mm	4148
Machine full height mm	10874
Wheelbase mm	4300
Track mm	3286/2360 (front / rear)
Weight parameter	*
Accumulated mass kg	35405
No load load kg	23765/11640 (front / rear)
Power parameters	*
Engine Model	QSB6.7
Engine rated power kw	164
Engine rated torque N.m	949
Engine emissions	U.S.EPA Tier 3EU Stage III
Driving parameters	*
Driving	*
Maximum travel speed km / h	27/27 (no load / full load)
Turn	*
Minimum turning diameter m	12
Maximum climbing degree of	0.3
Minimum ground clearance mm	300
Close to the angle of °	28
Leave angle °	39
Braking distance m	7
Job Performance Parameters	*
Maximum rated total weight t	8
Maximum lifting height mm	18819
Maximum lifting speed (no load / full load) m / min	650/550
Maximum descent speed (no load / full load) m / min	600/500
Heap high capacity layer	7

XCH90

XCH90	Unit	Parameter
Rated lifting capacity	kg	9000
Max. lifting height	mm	21450
Max. lifting speed	mm/s	675
Max. travel speed	km/h	30
Engine rated power	kW /(r/min)	164/2300
